Pool Lifts

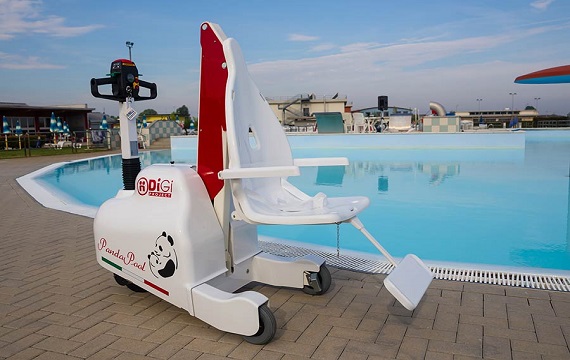

CEDAS Mobile Pool Lifts for Pool Access : CEDAS Panda

Lifting capacity 150 kg
Max arm travel: 1500 mm
Depth of seat inside the water : 900 mm
Time of lowering with weight: 25 sec.
Time of lifting with weight: 18 sec
2 speed automatic handlingace requirements
Autonomy: 100 working cycles
Rotating drive wheel radius: 200°
Manual emergency operation in case of damage to electric system
Automatic braking system integrated in the wheel
Infrared ground detector
2 years full warranty from CEDAS

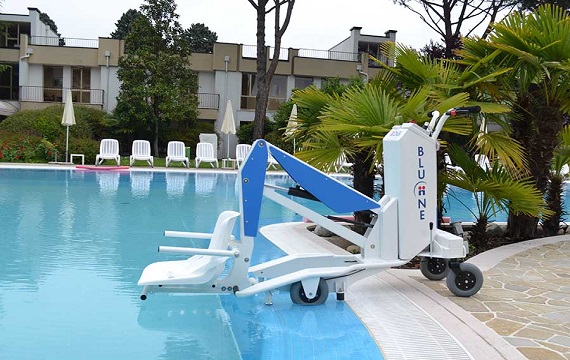

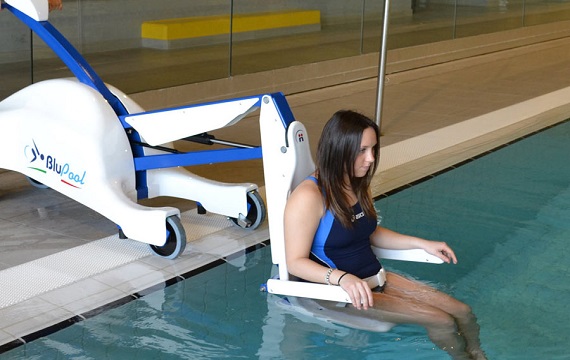

CEDAS Mobile Pool Lifts for Pool Access : CEDAS Bluepool

Capacity 140 Kg
Complying to European & local standards
Quiet, compact, safe & durable
Max. arm travel 1400 mm
Depth of seat inside water 820 mm
Start/stop key
Maximum lowering with load 25 sec.
Maximum time lifting with load 18 sec
Manual lowering and lifting in case of electric system failure
Emergency mushroom shaped button
Authonomy:80 complete cycles
2 years full warranty from CEDAS

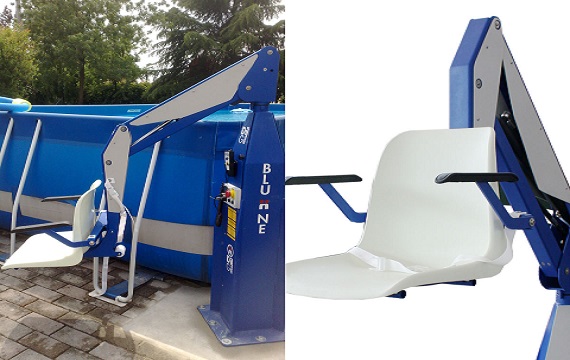

CEDAS Mobile Pool Lifts for Pool Access : Blueone

Max. lifting capacity: kg 120
Max. arm travel: 1150 mm
Depth of seat in the water: 600 mm
Time of lowering with weight: 23 sec
Time of lifting with weight :17sec
Autonomy: 50 cycles
Control panel with UP and DOWN buttons, battery
Power 24 V
Hydroelectric box
Manual emergency operating system in case of damage in electric system
Braking system on wheels, electrically controlled switch off/on from handlebars
2 years full warranty from CEDAS

CEDAS Mobile Pool Lifts for Pool Access : CEDAS Ecopool

Maximum capacity: 136 kg
Maximum arm travel: 1260 mm
Seat depth into the water: 650 mm
Time of lowering into the water with weight: 20 sec.
Time of lifting with weight: 25 sec.
Mobile push-button panel with spiral cable IPX06 for the up and down movements from the water.
4 Wheels with 200 mm diameter.
Service brake on rear wheels.
Emergency mushroom shape button.
Removable battery for charging.
Autonomy: 60 complete work cycles.
2 years full warranty from CEDAS

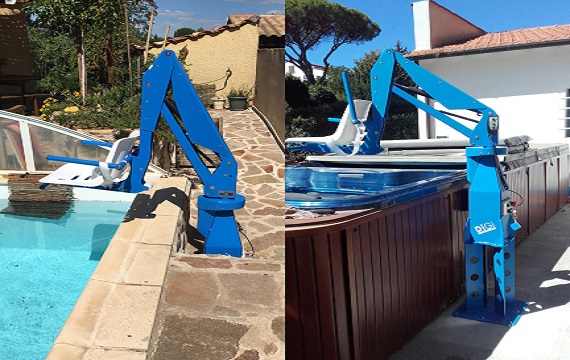

CEDAS Fixed Pool Lifts for Pool Access : CEDAS F100

Max. lifting capacity: 140kg
Max arm travel: 1150mm-250mm
Time of lowering with weight: 23 sec.
Time of lifting with weight: 17 sec.
Weight: 100 kg
Zinc coated steel frame with powder coating finish
Battery: 12V
Power: 24V
Hydroelectric box
External battery charger
Rotation: 350°
Handset and control box

CEDAS Mobile Pool Lifts for Pool Access : CEDAS F100M

Max. lifting capacity: 140kg
Max arm travel: 1150mm-250mm
Time of lowering with weight: 23 sec.
Time of lifting with weight: 17 sec.
Weight: 100 kg
Zinc coated steel frame with powder coating finish
Power: 24V
External battery charger
Rotation: 340°
Rotation time: 30 sec.
Ground fixing frame: 2 different levels available: 400 mm/ 600mm
Handset and control box

CEDAS Fixed Pool Lifts for Pool Access : CEDAS F130

Max. lifting capacity: 140kg
Max arm travel (without support): 1400mm
Time of lowering with weight: 40 sec.
Time of lifting with weight: 40 sec.
Weight: 50 kg
Zinc coated steel frame with powder coating finish
Battery: 12V
Power: 24V
Electric box
External battery charger
Rotation: 160°
Wall fixing plate: 90×20 cm
Handset

CEDAS Mobile Pool Lifts for Pool Access : CEDAS F145B

Max. lifting capacity: 140kg
Max arm travel (without support): 1350mm
Time of lowering with weight: 40 sec.
Time of lifting with weight: 40 sec.
Weight: 63-58 Kg
Zinc coated steel frame with powder coating finish
Battery: 24V
Power: 12V
Electric box
External battery charger
Rotation: 360°
Standard socket : 400×400 mm
Handset

→
